Symons 3" Cone Crusher Bronze Part Center Step Bearing Plate

Shop high-quality Symons 3" Cone Crusher Bronze Part Center Step Bearing Plate at our factory. Durable and reliable for your crushing equipment needs. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Our Advantages
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
5760-0801
Material
Copper Alloy
Condition
New
Customized
Customized
Application
Milling Machinery, Crusher, Rubber Maching, Quarry
Processing
Centrifugal Casting, Sanding Casting, Machining
Factory
Casting Factory
Transport Package
Wooden Case
Trademark
OEM
Origin
China
HS Code
84749000
Production Capacity
1000piece/Year

Product Description

Product Description
We supply all kinds of OEM aftermarket Bronze Parts and

High Manganese Casting Parts

  for Symons,Sadvik ,Pegson,Telsmith and Nordberg Crushers, the crusher spares fit to your crushers guaranteed.but not limited what we mentioned these as below.

Main Products
Crusher Bushing,Socket Liner,Piston Step Bearing,Eccentric Bushing,Main Shaft Step Bearing,Crusher Countershafte,Cone Crusher Upper Frame,Bottom Shell Bushing,Top Shell,Bottom Shell,Main Frame ,Adjustment Ring, Head Assy,Bowl,Drive Gear ,Counterweight assy ,Shaft ,Pitman ,Bronze Bushing ,Pump ,Tramp Release Cylinder ,Protection Bushing ,Gear and Gear & Pinion ,Jaw Crusher Fixed Jaw,Movable Jaw,Cone Crusher Mantle,Concave,Bowl Liner.Seals,Spring ,Wedge ,Toggle Plate ,and Etc .


Our Capacity:
  a: Centrifugal Casting: Diameter under 4500mm
   b: Continuous Casting: Diameter under 300mm
   c: Sand Casting: Diameter under 5000mm
   d: Output:30ton/day
   e: Finished Machining output :15ton

f: Other special shaped parts can use other methods of casting or shaped moulds.



OEM Crusher Parts for Crusher Model:
 GP Series:
GP100 ,GP100S ,GP200,GP200s,GP300,GP300S,GP500,GP500S,GP550,GP11F,GP11M,GP220,GP330
 HP series:
HP3,HP4,HP5,HP6,HP100,HP200,HP300,HP400,HP500,HP700,HP800
 MP Series:
MP800,MP1000,MP1250,MP2500;
C-Jaws:
C63,C80,C96,C100,C106,C110,C116,C120,C125,C130,C140,C145,C150,C160,C200,C3054.
 Gyrotary:
42-65,50-65,54-75,62-75,60-89,60-110;
 VSI:
B5100SE,B6150SE,B7150SE,B9100SE;
NP Impact:
NP15,NP1110,NP1213,NP1315,NP1520,NP1620,NP1313,NP1415,NP2023;
 S Series:
S2800(CS420),S3800(CS430),S4800(CS440),S6800(CS660).
 H Series:
H2800(CH420),H3800(CH430),H4800(CH440),H6800(CH660),H7800(CH870),H8800(CH880),CH860,CH865,CH890,CH895.
 Jaw Series:
CJ409,CJ411,CJ412,CJ612,CJ613,CJ615,CJ815.
 VSI Series:
CV215,CV217,CV218,CV228,CV229 etc;
Minyu Series:
MCC60,MCC54,MCC51,MCC54,MCC40
Telsmith Series:
 24"CONE, 36"CONE,48"CONE
Nordberg Series:
937 omnicone,1560 omnicone


Mold No. Description Drawing No. Unit weight(kg)
symons 3' 3' Inner  eccentric  bushing 2207-0561 50
symons 3' 3' (sh) inner eccentric bushing 2207-1401 51
symons 3' 3' Socket liner(STD) 2214-3565 38
symons 3' 3' Socket liner(sh) 4872-4795 41
symons 3' 3' Coutershaft box bushing 2206-0762 11
symons 3' 3" Lower step bearing plate 9785-7501 9
symons 4' 4' Outer eccentric bushing 2214-5601 129
symons 4' 4' Inner eccentric bushing 2214-4481 75
symons 4' 4' Socket liner 4872-5205 66
symons 4' 4' Thrust Bearing Plate 5760-0801 13
symons 4_1/4' 4-1/4' Outer eccentric bushing 2214-5885 144
symons 4_1/4' 4-1/4'Inner eccentric bushing 2214-3930 102
symons 4_1/4' 4-1/4' Socket liner 4872-6435 74
symons 4_1/4' 4-1/4' Socket liner 4872-6430 61
symons 4_1/4' 4 1/4' Lower step bearing plate 2206-2090 18
symons 4_1/4' 4 1/4'  Center step bearing plate 5760-2601 22
symons 4_1/4' 4 1/4' Lower step bearing plate 5760-1701 22
symons 4_1/4' 4' and 4 1/4' Coutershaft box bushing 5760-2601 22
symons 5_1/2' 5-1/2' Outer eccentric bushing  2214-6161 273
symons 5_1/2' 5-1/2 Inner eccentric bushing 2214-5706 170
symons 5_1/2' 5-1/2' Socket liner 4872-7050 184
symons 5_1/2' 5-1/2' Countershaft box bushing 2206-5840 23
symons 5_1/2' 5 1/2' Lower step bearing plate 5760-3501 28
symons 5_1/2' 5-1/2' (sh) Countershaft box bushing 2206-5871 22
symons 7' 7' Outer  eccentric bushing  2214-8401 462
symons 7' 7' Outer  eccentric bushing 2214-7561 475
symons 7' 7' Inner eccentric bushing 2214-6721 315
symons 7' 7' Socket liner 4872-8485 300
symons 7' 7' Socket liner 4872-8520 300
symons 7' 7' Countershaft box bushing 2206-8500 28
symons 7' 7' Lower step bearing plate 5760-7401 47
symons 7' 7' Center step bearing plate 5760-7701 43

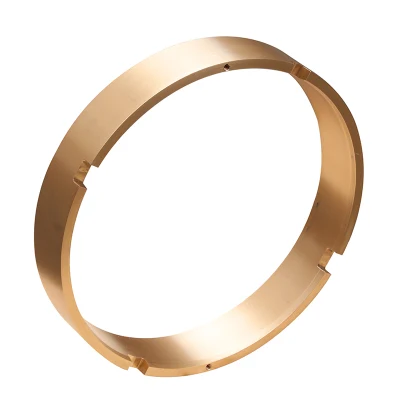

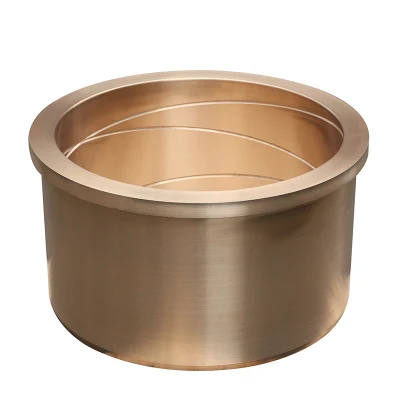

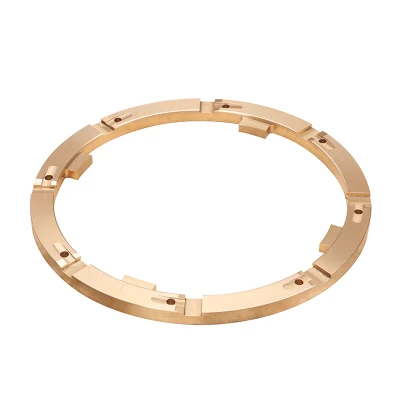

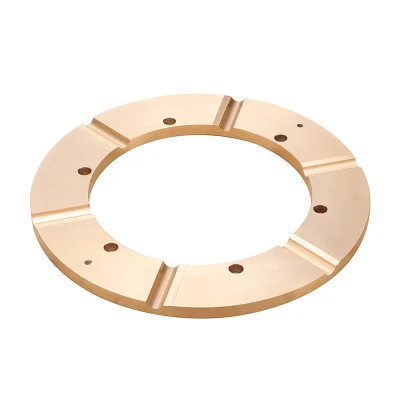

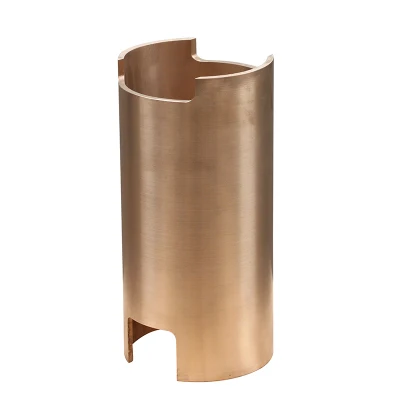

Detailed Photos

Symons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing Plate
Symons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing Plate

Symons 3" Cone Crusher Bronze Part Center Step Bearing Plate
Symons 3" Cone Crusher Bronze Part Center Step Bearing Plate

Cu Main Material
  Cu Sn Zn Pb Fe Al Mn P Ni
C93700 78-82 9-11   8-11
C93200 81-85 6.3-7.5 1-4 6-8         1
C95400 >83       3-5 10-11.5 0.5   1.5
C95500 >78       3-5 10-11.5 3.5   3-5
C90700 88-90 10-12
C95300 >86       0.8-1.5 9-11
C95800 >79       3.5-4.5 8.5-9.5 0.8-1.5   4-5
C93600 79-83 6-8 1 11-13         1
C86300 60-66   22-28   2-4 5-7.5 2.5-5
C83600 84-86 4-6 4-6 4-6         1


Packaging & Shipping

Symons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing Plate

Symons 3" Cone Crusher Bronze Part Center Step Bearing Plate
Our Advantages

    On Time Delivery
    Customer Satisfaction

    OEM Quality of Products
    Quick Inquiry Response within 12hours


 Inspection:
1.Chemical Compositions Test
2.Mechanical Properties Test
(Tensile Strength, Yield Strength, Elongation, Reduction of Area, Impact Value, Hardness)

3.Non Destructive Test (UT, MT, PT, RT)
4.Dimensional Checking

Process Flow:
Symons 3" Cone Crusher Bronze Part Center Step Bearing PlateSymons 3" Cone Crusher Bronze Part Center Step Bearing Plate



After Sales Service

We usually provide 6 Months of repair service. If our duty, we will bear the repair cost or send the replacement parts.

FAQ

Q. What's your advantage?
A:  On Time Delivery /Customer Satisfaction
OEM Quality of Products /Quick Inquiry Response within 12hours
High-quality control and fast delivery with the most competitive price

Q. What's the warranty on your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

Q. What's your delivery time?
A: Within 15-35 days after we confirm your requirement.

Q. What's the payment terms?
A: T/T,100% L/C at sight are all accepted.
