Silicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding Wire

Shop our high-quality Silicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding Wire. Proudly made in our factory. Perfect for all your welding projects.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ERCuSi-A
Slag Characteristic
Acidic
Extended Length
>20mm
MOQ
500kg
Samples
Free Charge
Delivery Time
15 Days
Package
15kg
Transport Package
15kg/Spool
Specification
0.8mm 0.9mm 1.0mm 1.2mm 1.6mm
Trademark
Xunzhuo
Origin
China
HS Code
8311100000

Product Description

Silicon bronze welding wire ERCuSi-A copper argon arc welding wire

Silicon Bronze is a copper based filler metal that contains 3% Silicon and trace amounts of manganese, tin and zinc. It is used primarily for oxyacetylene welding of copper, copper-silicon and copper-zinc metals to themselves and to steel. Silicon Bronze is excellent for plain or galvanized steel sheet metal as well as other coated steels. It is also used for surfacing areas that are subjected to corrosion. The Oxyacetylene gas flame should be slightly oxidizing. Keep the weld puddle small in order to promote fast solidification and minimize cracking. A high boric acid flux should be used both before and during welding. Preheat is NOT recommended.


Grade number
The name of the
Meet (comparable) standards
Main Chemical Composition (%)
Features and Uses
GB
AWS
S201
Special copper welding wire
SCu1898
ERCu
Sn1 Si0.3 Mn0.3 Cu Rem.
Good mechanical properties, good crack resistance. Copper gas welding and argon arc welding.
S211
Silicon bronze welding wire
SCu6560
ERCuSi-A
Si3 Mn1 Cu Rem.
Good mechanical performance, copper alloy MIG brazing with argon arc welding and steel
S212
Phosphor bronze welding wire
SCu5180
ERCuSn-A
Sn5 Cu Rem.
Good wear resistance. Copper alloy argon arc and steel surfacing
S213
Phosphor bronze welding wire
SCu5210
ERCuSn-C
Sn8 Cu Rem.
Good wear resistance. Copper alloy argon arc and steel surfacing
S214
Aluminum bronze welding wire
SCu6100A
ERCuA1-A1
A17.5 Cu Rem.
Wear and corrosion resistance. Argon arc welding of copper alloy and surfacing of steel
S215
Aluminum iron bronze welding wire
SCu6180
ERCuA1-A2
A19 Cu Rem.
Wear and corrosion resistance. Argon arc welding of copper alloy and surfacing of steel
S216
Aluminum-nickel bronze welding wire
SCu6327
---
---
---

Note:

1.Before welding the oxide,oil and other contaminants on the welding edge of the workpiece and welding wire surface must be cleaned,therwise it will lead to porosity, slag and other defects, so that the performance of the weld is reduced.

2.The addition of tin expands the temperature range between the solid and the liquid phase.In order to reduce the thermal tendency in small pool and fast welding is appropriate.

3.T tungsten inert gas arc welding, the workpiece requires preheating,only with the flat position welding

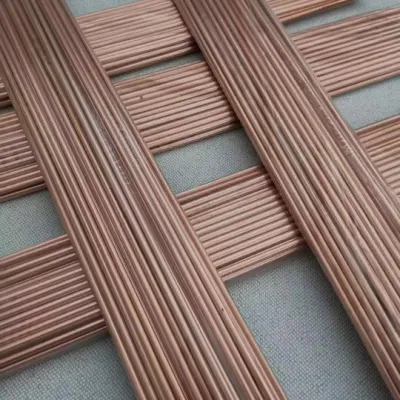

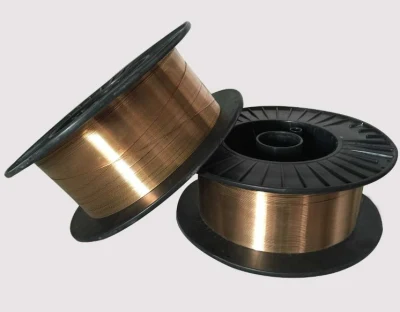

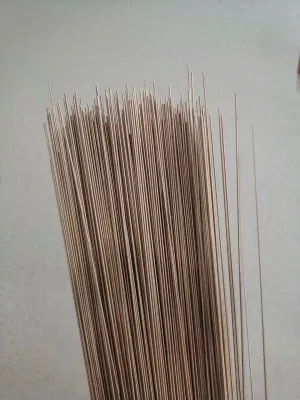

Product pictures
Silicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding Wire
Silicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding WireSilicon Bronze Welding Wire Ercusi-a Copper Argon Arc Welding Wire
